UVLS-FPD3-AR0144-SL-IR Narrow FOV Kit

UVLS-FPD3-AR0144-SL Back

UVLS-FPD3-AR0144-C-S33-IR

SKU: UVLSFPD3AR0144CS33IR Category: FPD-Link III Cameras Brand: TechNexion

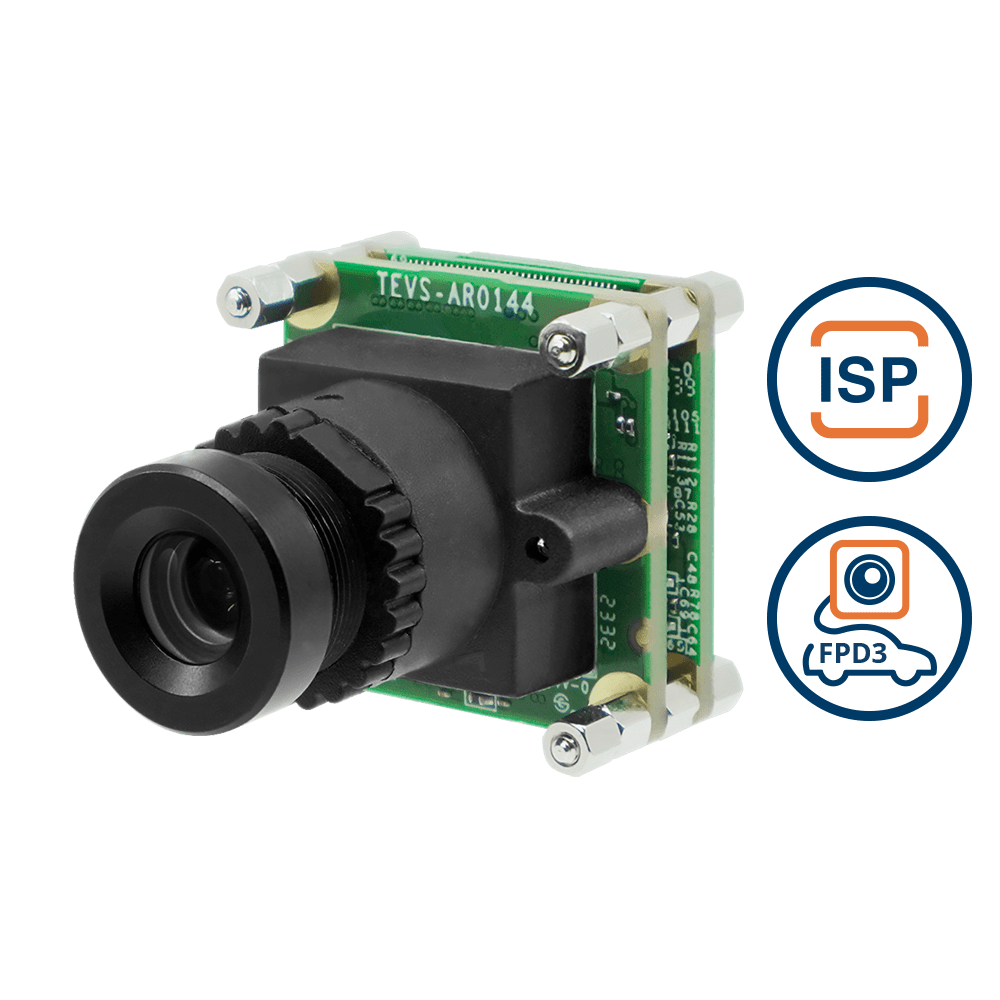

FPD-Link III PCB Board Level Camera with onsemi AR0144 1MP Color Global Shutter with Onboard ISP + 33 Degree M12 Lens with IR-Cut Filter

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 49	—	$109.40
50 - 199	5.99 %	$102.85
200 - 499	11.97 %	$96.30
500+	17.96 %	$89.75

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0144
Active Pixels	1280 (H) x 800 (V) = 1MP
Pixel Size	3.0 μm x 3.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	38 dB
Optical Format	1/4” (Diagonal 4.5 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1280 x 800 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY RGB888 RGB565 RAW8 RAW10 RAW12

Interface

Serial Link	FPD-Link III
Serializer	TI DS90UB953
Connector	FAKRA SMB Jack Z-Code

Power Specifications

Power over Coax	10.8V – 26.4V
Power Consumption	UYVY 1280 x 800 @ 60 fps ≤ 0.9W
Standby Power	≤ 0.1W Standby

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX95 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	8 mm
Aperture	F1.6
Module D-FOV	33.1° ± 5%
Module H-FOV	28.0° ± 5%
Module V-FOV	17.4° ± 5%
TTL	26.2 mm
BFL	7.8 mm
MOD	0.3 m
Distortion	< – 5.03%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 30.0(D) mm
Weight	20 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

UVLS-FPD3-AR0144-SL Block Diagram

Dimensions

UVLS-FPD3-AR0144 Dimensions

Spectral Characteristics

AR0144 Spectral Characteristics
