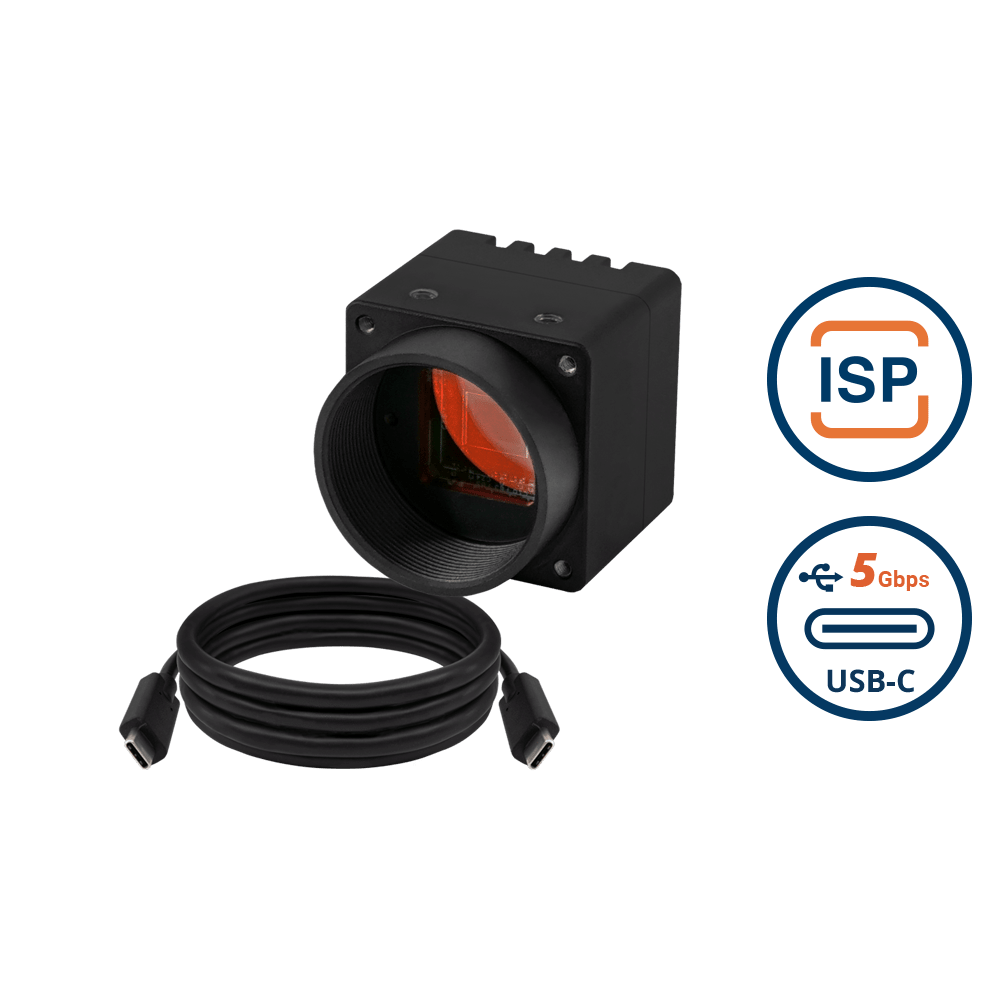

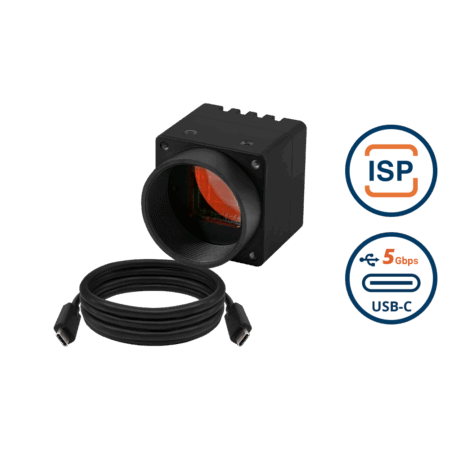

VCS-AR0235-CB FOV Kit

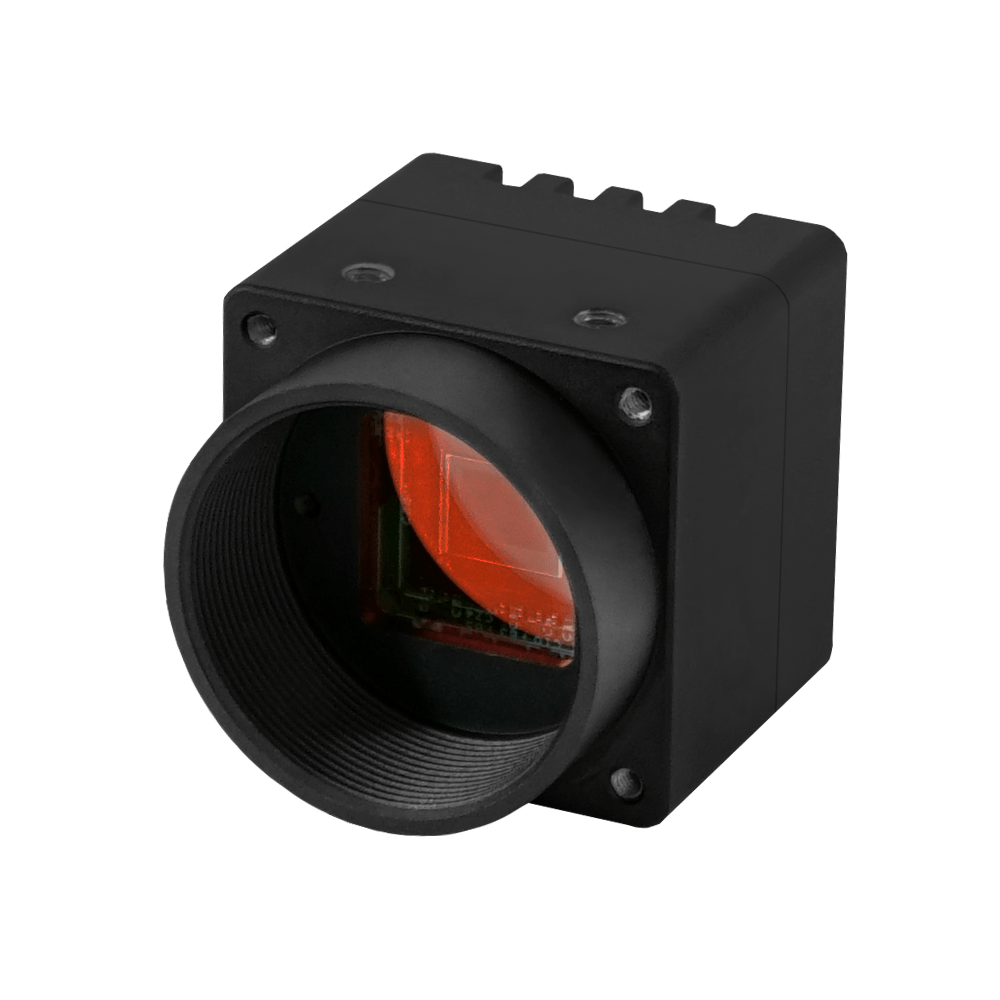

VCS-AR0235-CB

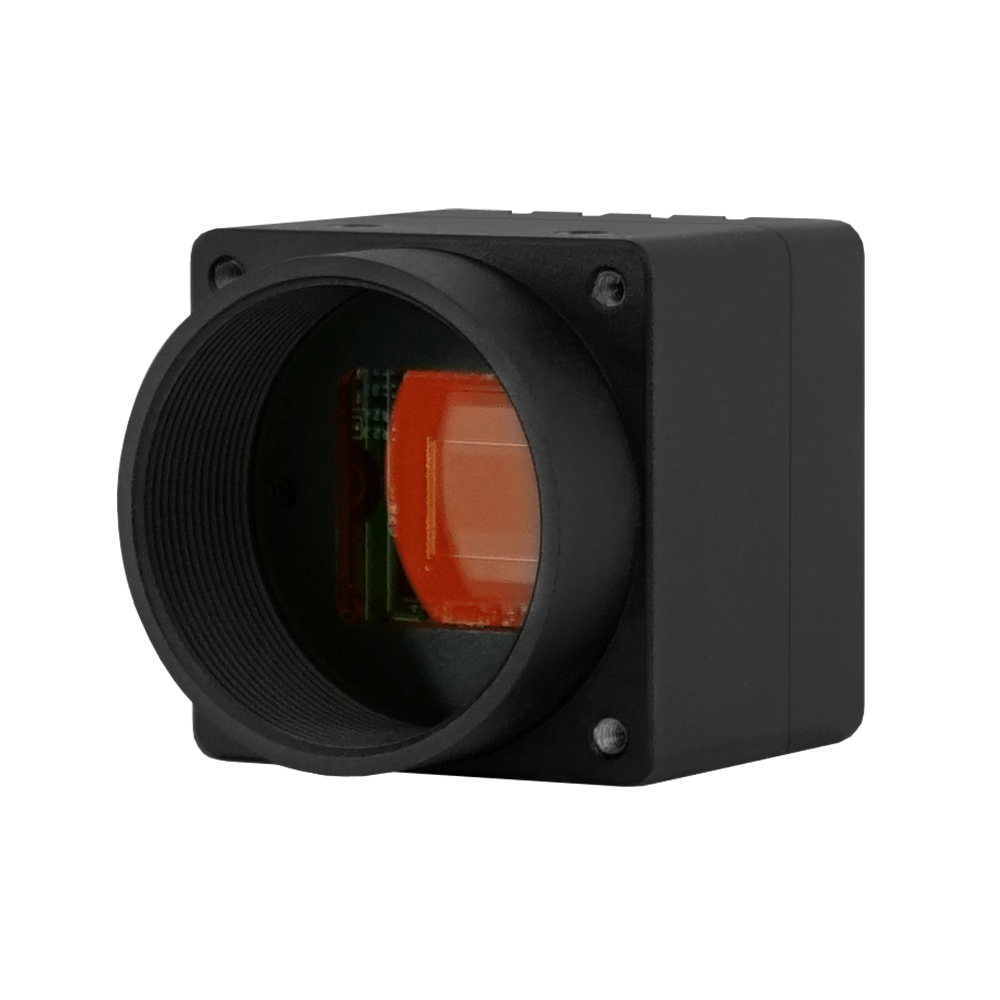

VCS-AR0235-CB

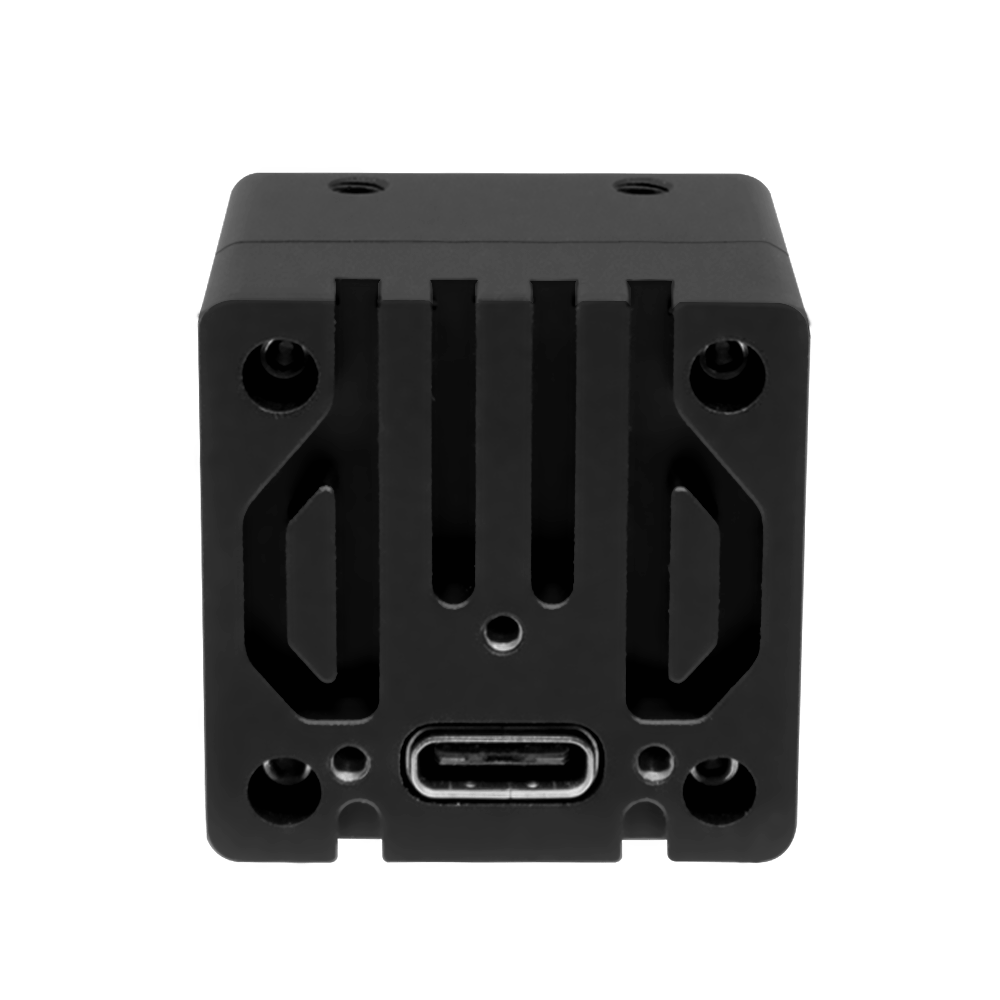

VCS-AR0235-SL Back

VCS-AR0235-C-CB-IR

SKU: VCSAR0235CCBIR Category: Brand:

USB3 Type-C Aluminium Enclosed Camera with onsemi AR0235 2MP Full-HD Color Global Shutter with Onboard ISP + IR-Cut Filter with C Mount Body + Incl. 1 Meter USB C Cable

More Information
Product Brief

$151.75

Quantity Discount (%) Price
1 - 49 — $151.75
50 - 199 5.96 % $142.71
200 - 499 11.91 % $133.68
500 - 999 17.86 % $124.64
1,000+ 23.82 % $115.60
x

Specifications

Additional information

Camera Information
CMOS Sensor

onsemi AR0235

Active Pixels

1920 (H) x 1200 (V) = 2.3MP

Pixel Size

2.8 μm x 2.8 μm

Illuminated type

Front Side Illuminated (FSI)

Maximum S/N Ratio

37 dB

Optical Format

1/2.8” (Diagonal 6.34 mm)

Shutter Type

Global Shutter

Chromaticity

Color

Maximum Frame Rate (YUV422-UYVY)

TBD

Maximum Frame Rate (MJPEG)

TBD

Output Format

YUV422-UYVY
MJPEG(JPG)
Interface
Connector

USB Type-C 5 Gbps
Power Specifications
Supply Voltage

5V ± 5%

Power Consumption

TBD

Standby Power

TBD
Software Support
Operation Systems

UVC Plug-and-play
Windows 10/11
Linux
Yocto

SDK

VizionViewer™ / VizionSDK
Environmental and Mechanical
Dimensions

29.5(W) x 29.5(H) x 33.7(D) mm

Weight

39 grams

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

-30°C to +70℃
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.89.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

VCS-AR0235-CB Block Diagram

Dimensions

VCI-AR0234-CB Dimensions

Spectral Characteristics

AR0235 Spectral Characteristics
