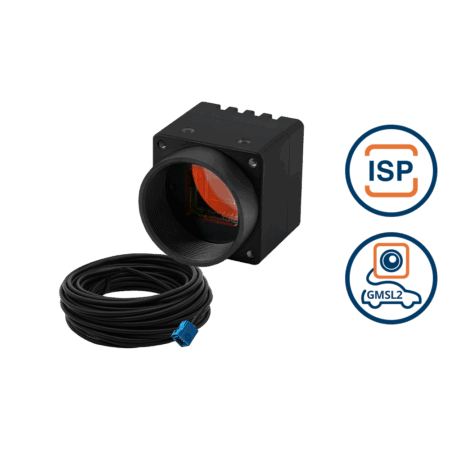

VLS-GM2-AR0235-CB Kit

VLS-GM2-AR0235-CB

VLS-GM2-AR0235 Back

VLS-GM2-AR0235-C-CB-IR

SKU: VLSGM2AR0235CCBIR Category: GMSL2™ Cameras Brand: TechNexion

GMSL2 Aluminium Enclosed Camera with onsemi AR0235 2MP Full-HD Color Global Shutter with Onboard ISP + IR-Cut Filter with C Mount Body

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 49	—	$137.75
50 - 199	6.05 %	$129.41
200 - 499	12.1 %	$121.08
500+	18.16 %	$112.74

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0235
Active Pixels	1920 (H) x 1200 (V) = 2.3MP
Pixel Size	2.8 μm x 2.8 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	37 dB
Optical Format	1/2.8” (Diagonal 6.34 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	TBD
Output Format	YUV422-UYVY RGB888 RGB565 RAW8 RAW10 RAW12

Interface

Serial Link	GMSL2™
Serializer	MAX96717
Connector	FAKRA SMB Jack Z-Code

Power Specifications

Power over Coax	10.8V – 26.4V
Power Consumption	TBD
Standby Power	TBD

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NXP i.MX95 NXP i.MX8M Plus Intel Arrow Lake Intel Panther Lake
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	29.5(W) x 29.5(H) x 33.2(D) mm
Weight	40 grams
MTBF	50,000 Hours
Shock	15G half-sine 11 ms duration
Vibration	1 Grms random 5-500Hz hr/axis
Relative Humidity	10 to 90 %
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

Dimensions

Spectral Characteristics
